Lightning Progress Indicator

A lightning-progress-indicator component displays steps horizontally. It indicates the number of steps in each process, the current step, as well as prior steps which is completed.

Steps are created using lightning-progress-step component along with label and value attributes. The current step is specified using the current-step attribute

Type – of progress step can be of two types:

• Base type

• Path type

If the type is not specified, the default type base is used.

Here let’s see an example of type (path)

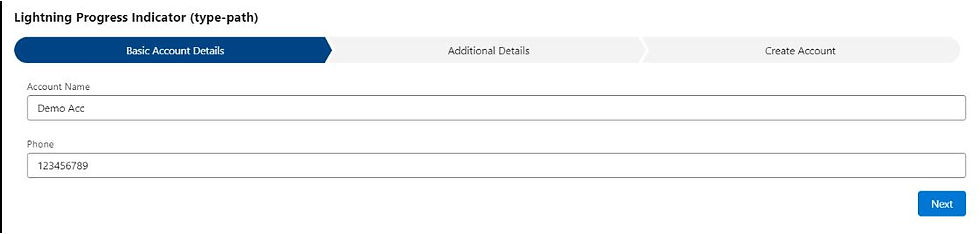

Step 1 :  Fill the basic details like Name , Phone & Click on Next button ,

Step 2 :

Choose the rating ,from the drop down and click on Next button ,

Step 3 :

This will be the final steps , where we can see the details we have entered in step 1 & step2

Click on Next button – an Apex class will be called, and Account will be created.

A toast Notification will be shown & you will be navigated to the newly created Account.

Lwc component :

 <template>

    <lightning-card title="Lightning Progress Indicator (type-path)">

        <div class="slds-card slds-var-m-around_medium">

            <lightning-progress-indicator current-step={selectedStep} type="path" variant="base">

                <lightning-progress-step label="Basic Account Details" value="1"></lightning-progress-step>

                <lightning-progress-step label="Additional Details" value="2"></lightning-progress-step>

                <lightning-progress-step label="Create Account" value="3"></lightning-progress-step>

            </lightning-progress-indicator>

            <template if:true={basicdetails}>

                <lightning-input type="text" variant="standard" label="Account Name" placeholder="type here..."

                    class="slds-var-m-around_medium" onchange={handleName} value={name}>

                </lightning-input>

                <lightning-input type="Phone" variant="standard" label="Phone" placeholder="type here..."

                    class="slds-var-m-around_medium" onchange={handlePhone} value={phone}>

                </lightning-input>

            </template>

            <template if:true={additionaldetails}>

                <lightning-combobox name="progress" label="Status" value={value} placeholder="Select Progress"

                    options={options} onchange={handleRatingChange} class="slds-var-m-around_medium">

                </lightning-combobox>

            </template>

            <template if:true={createacc}>

                <div class="slds-var-m-around_medium">

                    Account Name : <b> {name} </b> </br>

                    Phone : <b> {phone} </b> </br>

                    Rating : <b> {value} </b> </br>

                </div>

            </template>

            <div class="slds-text-align_right slds-var-m-around_medium">

                <lightning-button label="Next" onclick={handleNext} variant="brand">

                </lightning-button>

            </div>

        </div>

    </lightning-card>

</template>

JS code :

import { LightningElement, track } from 'lwc';

import createAcc from '@salesforce/apex/createAccount.createAcc';

import { ShowToastEvent } from 'lightning/platformShowToastEvent';

import { NavigationMixin } from 'lightning/navigation';

export default class NavigationLWC extends NavigationMixin(LightningElement) {

    @track basicdetails = true;

    @track additionaldetails = false;

    @track createacc = false;

    get options() {

        return [

            { label: 'Hot', value: 'Hot' },

            { label: 'Warm', value: 'Warm' },

            { label: 'Cold', value: 'Cold' },

        ];

    }

    @track name = '';

    @track phone = '';

    @track value = '';

    handleName(event) {

        this.name = event.target.value;

    }

    handlePhone(event) {

        this.phone = event.target.value;

    }

    handleRatingChange(event) {

        this.value = event.detail.value;

    }

    @track selectedStep = '1';

    handleNext() {

        var getselectedStep = this.selectedStep;

        if (getselectedStep === '1') {

            this.basicdetails = false;

            this.additionaldetails = true;

            this.selectedStep = '2';

        }

        else if (getselectedStep === '2') {

            this.basicdetails = false;

            this.additionaldetails = false;

            this.createacc = true;

            this.selectedStep = '3';

        }

        else if (getselectedStep === '3') {

            this.handleCreateAccount();

        }

    }

    handleCreateAccount() {

        createAcc({ name: this.name, phone: this.phone, rating: this.value })

            .then((result) => {

                console.log('result ==' + JSON.stringify(result));

                const event = new ShowToastEvent({

                    title: 'Success',

                    message: 'Account created successfully',

                    variant: 'success'

                });

                this.dispatchEvent(event);

                let recordId = result[0].Id;

                this[NavigationMixin.Navigate]({

                    type: 'standard__recordPage',

                    attributes: {

                        recordId: recordId,

                        objectApiName: 'Account',

                        actionName: 'view'

                    }

                });

            }).catch((error) => {

                console.log('error ==' + JSON.stringify(error));

            })

    }

}

Apex Class :

public class createAccount {

@AuraEnabled

    public static List<Account> createAcc(String name,String phone,String rating){

        List<Account> accList = new List<Account>();

        Account acc = new Account();

        acc.Name = name;

        acc.Phone = phone;

        acc.Rating = rating;

        accList.add(acc);

        insert accList;

        return accList;

    }

}
